AOZ5311NQI-03, High-Performance DrMOS Power Module

AOZ5311NQI-03 High-Current, High-Performance DrMOS Power Module General .
The AOZ5311NQI-03 is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

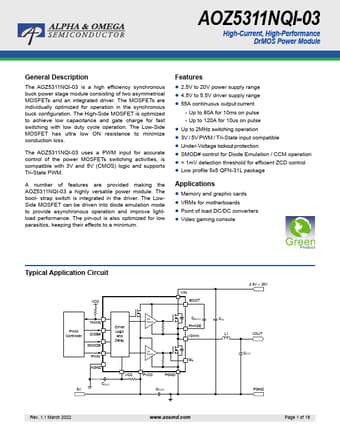

datasheet Preview Page 1 from Datasheet4u.com

AOZ5311NQI-03-AlphaOmegaSemiconductors.pdf

AOZ5311NQI-03 Datasheet Preview — Preview of AOZ5311NQI-03 PDF

Datasheet Details

Part number:

AOZ5311NQI-03

Manufacturer:

Alpha & Omega Semiconductors

File Size:

665.68 KB

Description:

High-Performance DrMOS Power Module

Features

* are provided making the AOZ5311NQI-03 a highly versatile power module. The boot- strap switch is integrated in the driver. The LowSide MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve lightload performance. The pin-out is also optimized for low parasitics,

Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming console Typical Application Circuit VCC VIN BOOT THWN PWM Controller DISB# SMOD# Driver Logic and Delay PWM AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT P
