AOZ5311NQI - DrMOS Power Module

Alpha & Omega Semiconductors

Datasheet Details

Part number	AOZ5311NQI
Manufacturer	Alpha & Omega Semiconductors
File Size	2.09 MB
Description	DrMOS Power Module
Datasheet	AOZ5311NQI-AlphaOmegaSemiconductors.pdf

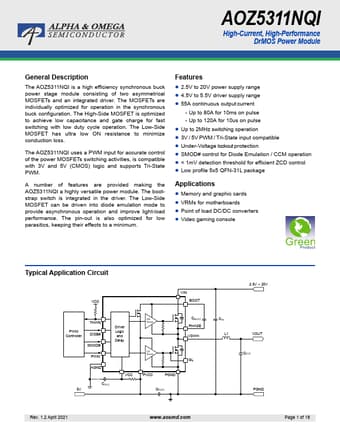

The AOZ5311NQI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

are provided making the AOZ5311NQI a highly versatile power module. The bootstrap switch is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, keeping their effects to a minimum. Features.
2.5V to 20V power supply range.
4.5V to 5.5V driver supply range.
55A continuous output current - Up to 80A for 10ms on pulse - Up to 120A f.
