AOZ5313NQI Datasheet - Alpha & Omega Semiconductors

AOZ5313NQI, DrMOS Power Module

AOZ5313NQI High-Current, High-Performance DrMOS Power Module General .
The AOZ5313NQI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

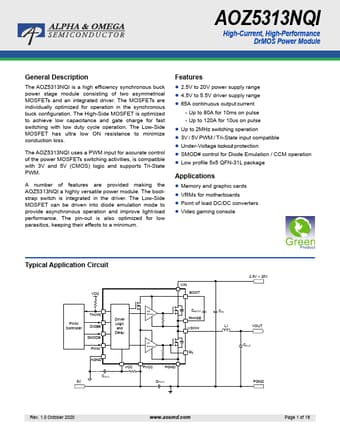

datasheet Preview Page 1 from Datasheet4u.com

AOZ5313NQI-AlphaOmegaSemiconductors.pdf

AOZ5313NQI Datasheet Preview — Preview of AOZ5313NQI PDF

Datasheet Details

Part number:

AOZ5313NQI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

2.08 MB

Description:

DrMOS Power Module

Features

* are provided making the AOZ5313NQI a highly versatile power module. The bootstrap switch is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, ke

Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming console Typical Application Circuit VCC VIN BOOT THWN PWM Controller DISB# SMOD# Driver Logic and Delay PWM AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT P
