AOZ7200CI Datasheet - Alpha & Omega Semiconductors

AOZ7200CI 600V N-channel MOSFET

The AOZ7200CI is a 600V AlphaZBLTM product that controls the external N-channel MOSFET to replace a diode when used in AC/DC diode-bridge application. The AOZ7200CI can help to reduce power consumption and heat dissipation. In diode-bridge application, the AOZ7200CI senses the voltage drop and reduc.

AOZ7200CI Features

* Replaces a power diode in HV bridge rectifier

* Self-powered in AC system

* Low reverse threshold 1mV

* Low quiescent current 5uA Applications

* AC/DC

* HV bridge rectifier application The AOZ7200CI is available in a SOT23-5 package and is rated ove

AOZ7200CI Datasheet (648.54 KB)

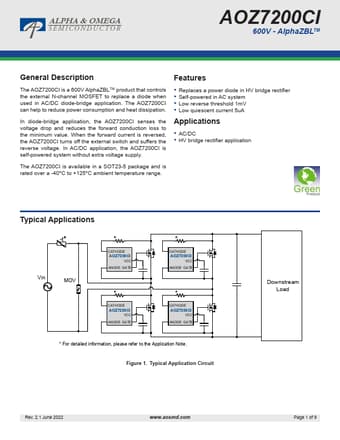

Preview of AOZ7200CI PDF
AOZ7200CI Datasheet Preview Page 2 AOZ7200CI Datasheet Preview Page 3

Datasheet Details

Part number:

AOZ7200CI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

648.54 KB

Description:

600v n-channel mosfet.
