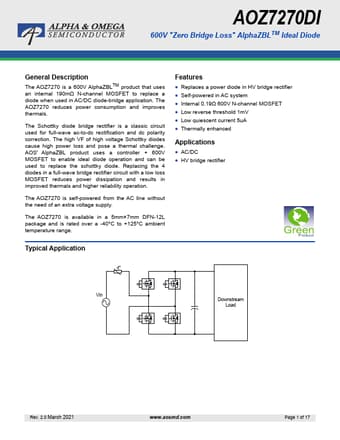

AOZ7270DI Datasheet, Diode, Alpha & Omega Semiconductors

AOZ7270DI Features

• Diode
• Replaces a power diode in HV bridge rectifier
• Self-powered in AC system
• Internal 0.19Ω 600V N-channel MOSFET
• Low reverse threshold 1mV

PDF File Details

Part number:

AOZ7270DI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

971.93kb

Download:

📄 Datasheet

Description:

600v ideal diode. The AOZ7270 is a 600V AlphaZBLTM product that uses an internal 190mΩ N-channel MOSFET to replace a diode when used in AC/DC diode-bri

AOZ7270DI Application

• Applications
• AC/DC
• HV bridge rectifier Typical Application -to Vin Downstream Load Rev. 2.0 March 2021 www.aosmd.com Page
