AOZ7271DV Datasheet, Diode, Alpha & Omega Semiconductors

AOZ7271DV Features

  • Diode
  • Replaces a power diode in HV bridge rectifier
  • Self-powered in AC system
  • Internal 0.125 Ω 600 V N-channel MOSFET
  • Low reverse threshold 0.8 mV

PDF File Details

Part number:

AOZ7271DV

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.11MB

Download:

📄 Datasheet

Description:

600v ideal diode. The AOZ7271 is a 600 V AlphaZBLTM product that uses an internal 125 mΩ N-channel MOSFET to replace a diode when used in AC/DC diode-b

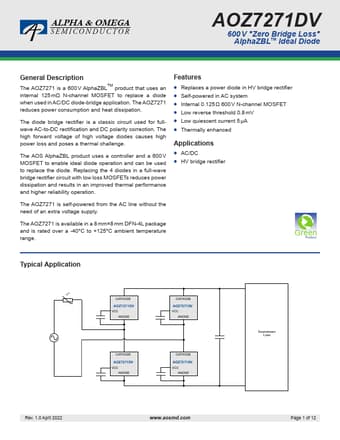

Datasheet Preview: AOZ7271DV 📥 Download PDF (1.11MB)
Page 2 of AOZ7271DV Page 3 of AOZ7271DV

AOZ7271DV Application

  • Applications
  • AC/DC
  • HV bridge rectifier The AOZ7271 is self-powered from the AC line without the need of an extra voltage supply
