AV102-12

HIP3 Variable Attenuator 1.70.2.00 GHz

AV102-12 Features

* I +50 dBm IP3 Typical I Low Loss 1 dB Typical I Attenuation 30 dB Typical I Good VSWR

AV102-12 General Description

The AV102-12 is a current controlled variable attenuator from Alpha’s series of HIP3™ components. It is designed to meet the wide dynamic range required in spread spectrum wireless base station applications. A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface .

AV102-12 Datasheet (801.41 KB)

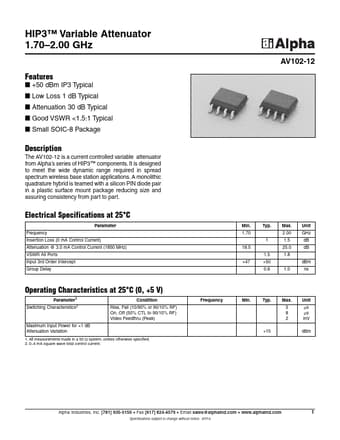

Preview of AV102-12 PDF

Datasheet Details

Part number:

AV102-12

Manufacturer:

Alpha Industries

File Size:

801.41 KB

Description:

Hip3 variable attenuator 1.70.2.00 ghz.
