MAX7000A - Programmable Logic Device

Altera Corporation

The MAX7000A by Altera Corporation is a Programmable Logic Device. Below is the official datasheet preview.

📥 Download Datasheet

MAX7000A Programmable Logic Device by Altera Corporation - Datasheet Preview — Official preview page of the **MAX7000A** Programmable Logic Device datasheet (Altera Corporation).

Datasheet Details

Part number	MAX7000A
Manufacturer	Altera Corporation
File Size	916.89 KB
Description	Programmable Logic Device
Datasheet	MAX7000A_AlteraCorporation.pdf

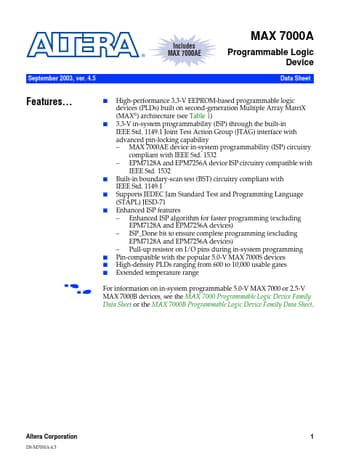

Additional preview pages of the MAX7000A datasheet.

MAX7000A Product details

Description

MAX 7000A Programmable Logic Device Data Sheet Software design support and automatic place-and-route provided by Altera’s development systems for Windows-based PCs and Sun SPARCstation, and HP 9000 Series 700/800 workstations Additional design entry and simulation support provided by EDIF 2 0 0 and 3 0 0 netlist files, library of parameterized modules (LPM), Verilog HDL, VHDL, and other interfaces to popular EDA tools from manufacturers such as Cadence, Exemplar Logic, Mentor Graphi

Features

f.
High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX®) architecture (see Table 1).
3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability.
MAX 7000AE device in-system programmability (ISP) circuitry compliant with IEEE Std. 1532.
EPM7128A and EPM7256A device ISP circuitry compatible with IEEE Std.
