MAX7032 - ASK/FSK Transceiver

Datasheet Summary

Features

+2.1V to +3.6V or +4.5V to +5.5V Single-Supply Operation.
Single Crystal Transceiver.
User-Adjustable 300MHz to 450MHz Carrier Frequency.
ASK/OOK and FSK Modulation.
User-Adjustable FSK Frequency Deviation Through Fractional-N PLL Register.
Agile Transmitter Frequency Synthesizer with fXTAL / 4096 Carrier-Frequency Spacing.
+10dBm Output Power into 50Ω Load.
Integrated TX/RX Switch.
Integrated Transmit and Receive.

Maxim Integrated Products

📥 Download Datasheet

Datasheet Details

Part number	MAX7032
Manufacturer	Maxim Integrated Products
File Size	307.36 KB
Description	ASK/FSK Transceiver
Datasheet	MAX7032 Datasheet

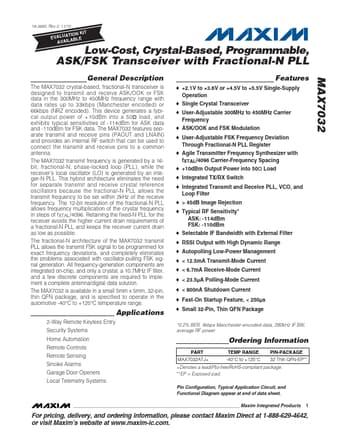

Additional preview pages of the MAX7032 datasheet.
