MAX7042 - 308MHz/315MHz/418MHz/433.92MHz Low-Power FSK Superheterodyne Receiver

Datasheet Summary

Description

The MAX7042 fully integrated, low-power, CMOS superheterodyne RF receiver is designed to receive frequency-shift-keyed (FSK) data at rates up to 66kbps nonreturn-to-zero (NRZ) (33kbps Manchester).

Features

  • +2.4V to +3.6V or +4.5V to +5.5V Single-Supply Operation.
  • Four User-Selectable Carrier Frequencies 308, 315, 418, and 433.92MHz.
  • -110dBm RF Input Sensitivity at 315MHz.
  • -109dBm RF Input Sensitivity at 433.92MHz.
  • Fast Startup (< 250µs).
  • Small 32-Pin Thin QFN Package.
  • Low Operating Supply Current 6.2mA Continuous 20nA Power-Down.
  • Integrated PLL, VCO, and Loop Filter.
  • 45dB Integrated Image Rejection.
  • Selectab.

📥 Download Datasheet

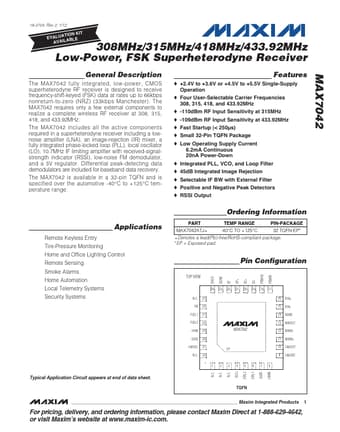

Datasheet preview – MAX7042

Datasheet Details

Part number MAX7042
Manufacturer Maxim Integrated Products
File Size 177.18 KB
Description 308MHz/315MHz/418MHz/433.92MHz Low-Power FSK Superheterodyne Receiver
Datasheet download datasheet MAX7042 Datasheet
Additional preview pages of the MAX7042 datasheet.

📁 Similar Datasheet

  • MAX704 - Low-Cost P Supervisory Circuits (Maxim)
  • MAX704R - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX704S - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX704T - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX700 - Power-Supply Monitor (Maxim)
  • MAX7000A - Programmable Logic Device (Altera Corporation)
  • MAX701 - Power-Supply Monitor (Maxim)
  • MAX702 - Power-Supply Monitor (Maxim)
  • MAX703 - Low-Cost P Supervisory Circuits (Maxim)
  • MAX7037 - RF ISM Transceiver (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX7044 - 300MHz to 450MHz High-Efficiency Crystal-Based 13dBm ASK Transmitter
  • MAX7030 - ASK Transceiver
  • MAX7031 - ASK Transceiver
  • MAX7032 - ASK/FSK Transceiver
  • MAX7033 - 315MHz/433MHz ASK Superheterodyne Receiver
  • MAX7034 - 315MHz/434MHz ASK Superheterodyne Receiver
  • MAX7036 - 300MHz To 450MHz ASK Receiver
  • MAX7060 - 280MHz to 450MHz Programmable ASK/FSK Transmitter

Full PDF Text Transcription

Click to expand full text
19-3704; Rev 1; 3/07 www.DataSheet4U.com 308MHz/315MHz/418MHz/433.92MHz Low-Power, FSK Superheterodyne Receiver General Description The MAX7042 fully integrated, low-power, CMOS superheterodyne RF receiver is designed to receive frequency-shift-keyed (FSK) data at rates up to 66kbps nonreturn-to-zero (NRZ) (33kbps Manchester). The MAX7042 requires only a few external components to realize a complete wireless RF receiver at 308, 315, 418, and 433.92MHz. The MAX7042 includes all the active components required in a superheterodyne receiver including a lownoise amplifier (LNA), an image-rejection (IR) mixer, a fully integrated phase-locked loop (PLL), local oscillator (LO), 10.
