MAX7044 300MHz to 450MHz High-Efficiency Crystal-Based 13dBm ASK Transmitter

Maxim Integrated Products

Description

19-3221; Rev 0; 1/04 KIT ATION EVALU E L B A AVAIL www.DataSheet4U.com 300MHz to 450MHz High-Efficiency, Crystal-Based +13dBm ASK Transmitter Gener.
Features. +2. OOK/ASK Transmit Data Format. Up to 100kbps Data Rate. +13dBm Ou.

📥 Download Datasheet

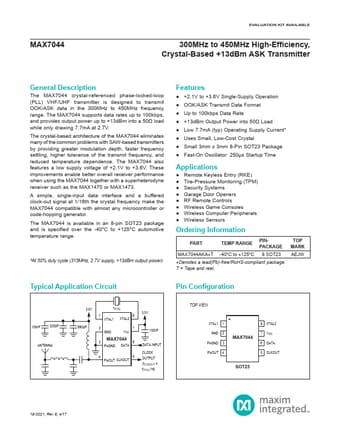

MAX7044 Datasheet Preview — Preview of MAX7044 PDF

Datasheet Specifications

Part number: MAX7044
Manufacturer: Maxim Integrated ↗ Products
File Size: 393.11 KB
Datasheet: MAX7044_MaximIntegratedProducts.pdf
Description: 300MHz to 450MHz High-Efficiency Crystal-Based 13dBm ASK Transmitter

Features

* +2.1V to +3.6V Single-Supply Operation
* OOK/ASK Transmit Data Format
* Up to 100kbps Data Rate
* +13dBm Output Power into 50Ω Load
* Low 7.7mA (typ) Operating Supply Current
* Uses Small, Low-Cost Crystal
* Small 3mm x 3mm 8-Pin SOT23 P

Applications

* Remote Keyless Entry (RKE) Tire-Pressure Monitoring (TPM) Security Systems Garage Door Openers RF Remote Controls Wireless Game Consoles Wireless Computer Peripherals Wireless Sensors -40°C to +125°C 8 SOT23-8 Typical Application Circuit TOP VIEW 3.0V 1 100nF 220pF 680pF 2 XTAL1 GND fXTAL XTAL2 VD
