MAX704 - Low-Cost P Supervisory Circuits

Product Overview

Maxim

Datasheet Details

Part number	MAX704
Manufacturer	Maxim
File Size	442.12 KB
Description	Low-Cost P Supervisory Circuits
Datasheet	MAX704 Datasheet

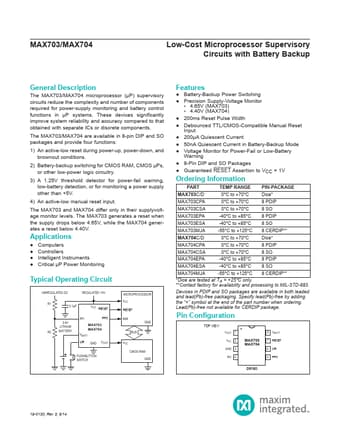

Additional preview pages of the MAX704 datasheet.

Product details

Description

The MAX703/MAX704 microprocessor (μP) supervisory circuits reduce the complexity and number of components required for power-supply monitoring and battery control functions in μP systems.

Features

Battery-Backup Power Switching.
Precision Supply-Voltage Monitor.
4.65V (MAX703).
4.40V (MAX704).
200ms Reset Pulse Width.
Debounced TTL/CMOS-Compatible Manual Reset Input.
200μA Quiescent Current.
50nA Quiescent Current in Battery-Backup Mode.
Voltage Monitor for Power-Fail or Low-Battery Warning.
8-Pin DIP and SO Packages.
Guaranteed RESET Assertion to VCC = 1V Ordering Information.
