MAX7030 - ASK Transceiver

Datasheet Summary

Description

www.datasheet4u.com

Features

  • +2.1V to +3.6V or +4.5V to +5.5V Single-Supply Operation.
  • Single-Crystal Transceiver.
  • Factory-Preset Frequency (No Serial Interface Required).
  • ASK/OOK Modulation.
  • +10dBm Output Power into 50Ω Load.
  • Integrated TX/RX Switch.
  • Integrated Transmit and Receive PLL, VCO, and Loop Filter.
  • > 45dB Image Rejection.
  • Typical RF Sensitivity.
  • : -114dBm.
  • Selectable IF Bandwidth with External Filter.
  • < 12.5mA T.

📥 Download Datasheet

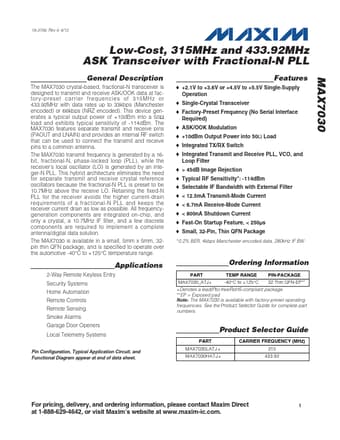

Datasheet preview – MAX7030

Datasheet Details

Part number MAX7030
Manufacturer Maxim Integrated Products
File Size 241.34 KB
Description ASK Transceiver
Datasheet download datasheet MAX7030 Datasheet
Additional preview pages of the MAX7030 datasheet.

📁 Similar Datasheet

  • MAX703 - Low-Cost P Supervisory Circuits (Maxim)
  • MAX7037 - RF ISM Transceiver (Maxim Integrated)
  • MAX700 - Power-Supply Monitor (Maxim)
  • MAX7000A - Programmable Logic Device (Altera Corporation)
  • MAX701 - Power-Supply Monitor (Maxim)
  • MAX702 - Power-Supply Monitor (Maxim)
  • MAX704 - Low-Cost P Supervisory Circuits (Maxim)
  • MAX704R - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX704S - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
  • MAX704T - 3.0V/3.3V Microprocessor Supervisory Circuits (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX7031 - ASK Transceiver
  • MAX7032 - ASK/FSK Transceiver
  • MAX7033 - 315MHz/433MHz ASK Superheterodyne Receiver
  • MAX7034 - 315MHz/434MHz ASK Superheterodyne Receiver
  • MAX7036 - 300MHz To 450MHz ASK Receiver
  • MAX7042 - 308MHz/315MHz/418MHz/433.92MHz Low-Power FSK Superheterodyne Receiver
  • MAX7044 - 300MHz to 450MHz High-Efficiency Crystal-Based 13dBm ASK Transmitter
  • MAX7060 - 280MHz to 450MHz Programmable ASK/FSK Transmitter

Full PDF Text Transcription

Click to expand full text
19-3706; Rev 0; 5/05 Low-Cost, 315MHz, 345MHz, and 433.92MHz ASK Transceiver with Fractional-N PLL General Description www.datasheet4u.com Features ♦ +2.1V to +3.6V or +4.5V to +5.5V Single-Supply Operation ♦ Single-Crystal Transceiver ♦ Factory-Preset Frequency (No Serial Interface Required) ♦ ASK/OOK Modulation ♦ +10dBm Output Power into 50Ω Load ♦ Integrated TX/RX Switch ♦ Integrated Transmit and Receive PLL, VCO, and Loop Filter ♦ > 45dB Image Rejection ♦ Typical RF Sensitivity*: -114dBm ♦ Selectable IF Bandwidth with External Filter ♦ < 12.5mA Transmit-Mode Current ♦ < 6.7mA Receive-Mode Current ♦ < 800nA Shutdown Current ♦ Fast-On Startup Feature, <250µs ♦ Small, 32-Pin, Thin QFN Package *0.
