MAX7036 Datasheet, Receiver, Maxim Integrated Products

MAX7036 Features

  • Receiver o ASK/OOK Modulation o < 250µs Enable Turn-On Time o On-Chip PLL, VCO, Mixer, IF, Baseband o Low IF (200kHz Nominal) o 5.5mA DC Current o 1µA Standby Current o 3.3V/5V Operation o Small

PDF File Details

Part number:

MAX7036

Manufacturer:

Maxim Integrated ↗ Products

File Size:

448.32kb

Download:

📄 Datasheet

Description:

300mhz to 450mhz ask receiver. www.datasheet4u.com MAX7036 The MAX7036 low-cost receiver is designed to receive amplitude-shift-keyed (ASK) and on-off-keyed (OOK)

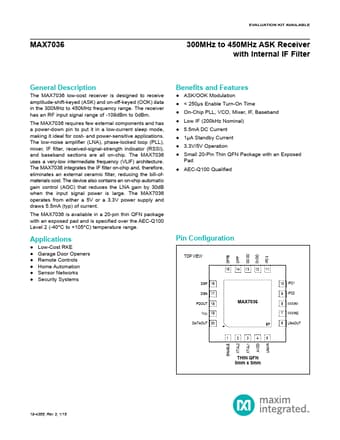

Datasheet Preview: MAX7036 📥 Download PDF (448.32kb)
Page 2 of MAX7036 Page 3 of MAX7036

MAX7036 Application

  • Applications The low-noise amplifier (LNA), phaselocked loop (PLL), mixer, IF filter, received-signalstrength indicator (RSSI), and baseband sectio
