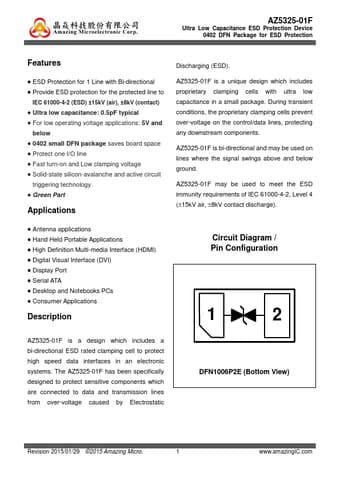

AZ5325-01F Datasheet, Protection, Amazing Micro

AZ5325-01F Features

• Protection ESD Protection for 1 Line with Bi-directional Provide ESD protection for the protected line to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) Ultra low capacitance: 0.5pF typical For l

PDF File Details

Part number:

AZ5325-01F

Manufacturer:

Amazing Micro

File Size:

171.92kb

Download:

📄 Datasheet

Description:

Ultra low capacitance esd protection.

AZ5325-01F Application

• Applications 5V and below 0402 small DFN package saves board space Protect one I/O line Fast turn-on and Low clamping voltage Solid-state silicon-a
