AZ5125-02F Datasheet, Tvs, Amazing Micro

AZ5125-02F Features

  • Tvs ESD Protect for 2 Lines with Bi-directional Provide ESD protection for the protected line to IEC 61000-4-2 (ESD) ±15kV (air), ±15kV (contact) IEC 61000-4-4 (EFT) 50A (5/50ns) Cable Disc

PDF File Details

Part number:

AZ5125-02F

Manufacturer:

Amazing Micro

File Size:

190.86kb

Download:

📄 Datasheet

Description:

Tvs. AZ5125-02F is a design which includes two bi-directional ESD rated clamping cells to protect two power lines, or two control lines, o

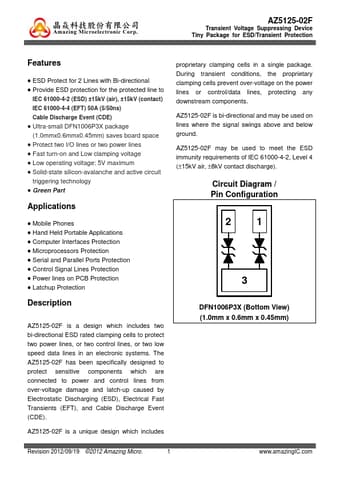

Datasheet Preview: AZ5125-02F 📥 Download PDF (190.86kb)
Page 2 of AZ5125-02F Page 3 of AZ5125-02F

AZ5125-02F Application

  • Applications Mobile Phones Hand Held Portable Applications Computer Interfaces Protection Microprocessors Protection Serial and Parallel Ports Prote
