AZ5325-01F - Ultra-Low Capacitance TVS Diode

AZ5325-01F Description

Ultra-Low Capacitance TVS Diode * ESD / transient protection of high-speed data lines exceeding IEC61000-4-2 (ESD): ±20 kV (air / contact) IEC.

AZ5325-01F Applications

* USB 2.0, 10/100/1000 Ethernet, Firewire, DVI, HDMI, S-ATA
* Mobile communication
* Consumer products (STB, MP3, DVD, DSC)
* LCD displays, camera
* Notebooks and desktop computers, peripherals AZ5325-01F DFN1006-2L (Bottom View) Order information Device

📥 Download Datasheet

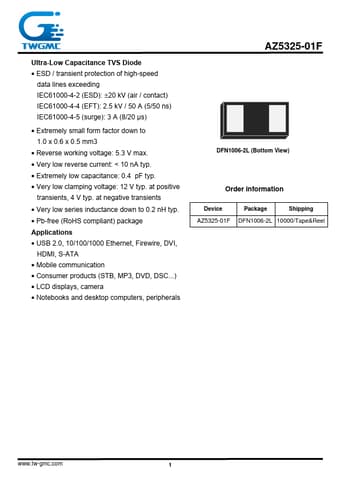

Preview of AZ5325-01F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ5325-01F
Manufacturer
TWGMC
File Size
1.36 MB
Datasheet
AZ5325-01F-TWGMC.pdf
Description
Ultra-Low Capacitance TVS Diode
