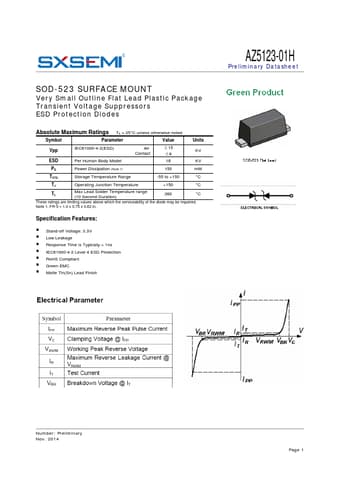

AZ5123 - Transient Voltage Suppressors
SOD-523 SURFACE MOUNT Very Small Outline Flat Lead Plastic Package Transient Voltage Suppressors ESD Protection Diodes Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value Units Vpp ESD IEC61000-4-2(ESD) Per Human Body Model Air Contact ±15 ±8 16 KV KV PD Power Dissipation (Note 1) 150 mW TSTG Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature +150 °C TL Max Lead Solder Temperature range (10 Second Duration) 260 °C These
AZ5123 Features
* Stand-off Voltage: 3 .3 V
* Low Leakage
* Response Time is Typically < 1ns
* IEC61000-4-2 Level 4 ESD Protection
* RoHS Compliant
* Green EMC
* Matte Tin(Sn) Lead Finish AZ5123-01H Preliminary Datasheet Number: Preliminary Nov. 2014 Page 1 ÿ AZ5123-01H Preliminar
