FM4006G

(FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers

FM4006G Features

* Batch process design, excellent power dissipation offers. better reverse leakage current and thermal resistance.

* Low profile surface mounted application in order to optimize board space.

* High current capability.

* High surge capability.

* Glass passivate

FM4006G Datasheet (444.53 KB)

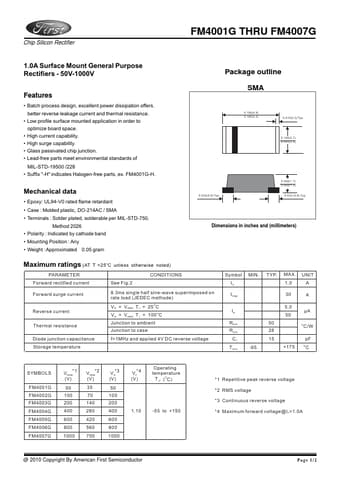

Preview of FM4006G PDF

Datasheet Details

Part number:

FM4006G

Manufacturer:

American First Semiconductor

File Size:

444.53 KB

Description:

(fm4001g - fm4007g) 1.0a surface mount general purpose rectifiers.
