MBR1200TG, MBR120TG, Schottky Barrier Rectifier

Schottky Barrier Rectifier MBR120TG THRU MBR1200TG Reverse Voltage: 20 to 200 Volts Forward Current: 1.0 Ampere Package outline .

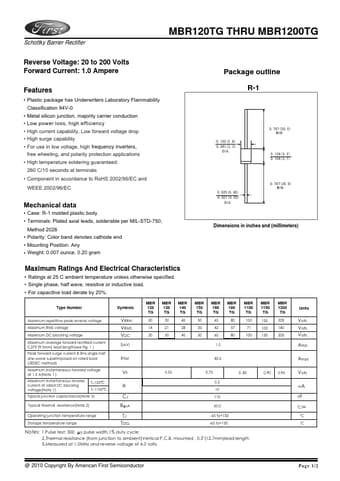

datasheet Preview Page 1 from Datasheet4u.com

MBR120TG-AmericanFirstSemiconductor.pdf

MBR1200TG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR1200TG, MBR120TG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR1200TG, MBR120TG

Manufacturer:

American First Semiconductor

File Size:

718.93 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBR1200TG, MBR120TG.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* High surge capability
* For us

Applications

* High temperature soldering guaranteed: 260 C/10 seconds at terminals
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Mechanical data
* Case: R-1 molded plastic body
* Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
* P
