MBR1200F - Schottky Diodes

Product Overview

Kexin

Part number	MBR1200F
Manufacturer	Kexin
File Size	577.20 KB
Description	Schottky Diodes
Datasheet	MBR1200F Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR1200F, MBR120F. Please refer to the document for exact specifications by model.

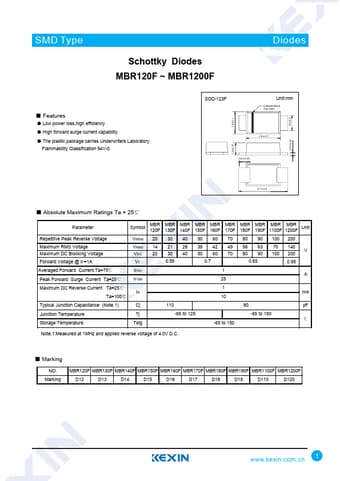

Additional preview pages of the MBR1200F datasheet.

s.
Low power loss,high efficiency.
High forward surge current capability.
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 SOD-123F Unit:mm Cathode Band Top View 1.0± 0.2 1.8± 0.1 0.10-0.30 1.3± 0.15 2.8 ± 0.1 0.6 ± 0.25 3.7 ± 0.2.
Absolute Maximum Ratings Ta = 25℃ Parameter Symbol MBR 120F MBR 130F MBR 140F MBR 150F MBR 160F MBR 170F MBR 180F MBR 190F MBR MBR 1100F 1200F Unit Repetitive Peak Reverse Voltage VRRM 20.
