AZ920 - ULTRA-SENSITIVE SUBMINIATURE RELAY

Product Overview

American Zettler

📥 Download Datasheet

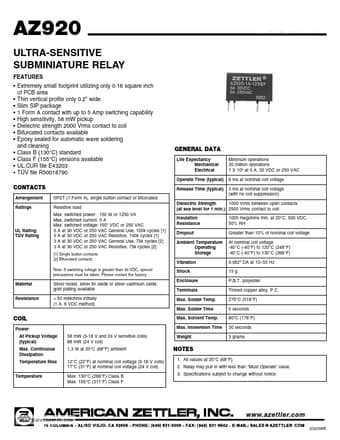

AZ920 ULTRA-SENSITIVE SUBMINIATURE RELAY by American Zettler - Datasheet Preview — Datasheet preview – AZ920

Datasheet Details

Part number	AZ920
Manufacturer	American Zettler
File Size	219.83 KB
Description	ULTRA-SENSITIVE SUBMINIATURE RELAY
Datasheet	AZ920 Datasheet
Additional preview pages of the AZ920 datasheet.

Product details

Features

Extremely small footprint utilizing only 0.16 square inch of PCB area.
Thin vertical profile only 0.2" wide.
Slim SIP package.
1 Form A contact with up to 5 Amp switching capability.
High sensitivity, 58 mW pickup.
Dielectric strength 2000 Vrms contact to coil.
Bifurcated contacts available.
Epoxy sealed for automatic wave soldering and cleaning.
Class B (130°C) standard.
Class F (155°C) versions available.
