AZ943T - SUBMINIATURE RELAY

Features

  • 20A switching capability.
  • Flux tight and sealed versions available.
  • Double and single pin terminal available.
  • Class B insulation (130°C) standard.
  • Class F insulation (155°C) available.
  • UL, CUR E44211.

📥 Download Datasheet

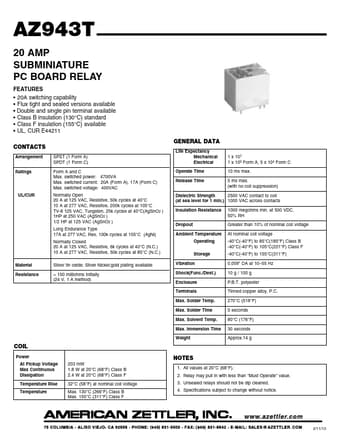

Datasheet preview – AZ943T

Datasheet Details

Part number AZ943T
Manufacturer American Zettler
File Size 134.29 KB
Description SUBMINIATURE RELAY
Datasheet download datasheet AZ943T Datasheet
Additional preview pages of the AZ943T datasheet.

📁 Similar Datasheet

Other Datasheets by American Zettler

Full PDF Text Transcription

Click to expand full text
AZ943T 20 AMP SUBMINIATURE PC BOARD RELAY FEATURES • 20A switching capability • Flux tight and sealed versions available • Double and single pin terminal available • Class B insulation (130°C) standard • Class F insulation (155°C) available • UL, CUR E44211 CONTACTS Arrangement Ratings UL/CUR SPST (1 Form A) SPDT (1 Form C) Form A and C Max. switched power: 4700VA Max. switched current: 20A (Form A), 17A (Form C) Max. switched voltage: 400VAC Normally Open 20 A at 125 VAC, Resistive, 50k cycles at 40°C 10 A at 277 VAC, Resistive, 200k cycles at 105°C TV-8 125 VAC, Tungsten, 25k cycles at 40°C(AgSnO2 ) 1HP at 250 VAC (AgSnO2 ) 1/2 HP at 125 VAC (AgSnO2 ) Long Endurance Type 17A at 277 VAC, Res, 100k cycles at 105°C (AgNi) Normally Closed 20 A at 125 VAC, Resistive, 6k cycles at 40°C (N.
