AZ935 - 20 AMP SUB-MINIATURE POWER RELAY

AZ935 Description

www.DataSheet4U.com AZ935 20 AMP SUB-MINIATURE POWER RELAY FOR AUTOMOTIVE USE .

AZ935 Applications

* Extremely silent operation
* QS-9000 Factory CONTACTS Arrangement Ratings DPDT (2 Form C) Max. switched power: 280 W Max. switched voltage: 100 VDC Max. switched current (make/break), continuous: 2 Form C: 25A/20A, 20A Material Resistance Silver nickel, silver tin oxide available

📥 Download Datasheet

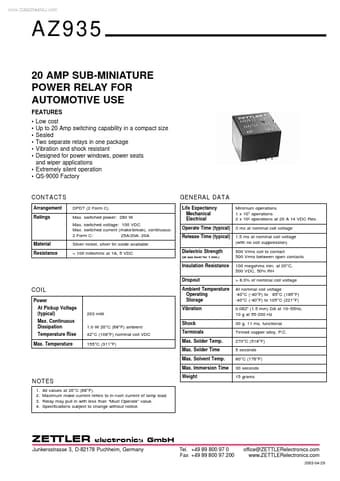

Preview of AZ935 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AZ935
Manufacturer
ZETTLER Electronics
File Size
110.28 KB
Datasheet
AZ935_ZETTLERElectronics.pdf
Description
20 AMP SUB-MINIATURE POWER RELAY
