AZ9371 - SENSITIVE SUBMINIATURE RELAY

AZ9371 Description

AZ9371 SENSITIVE SUBMINIATURE RELAY .

AZ9371 Features

* Thin vertical profile, only 7 mm wide
* High sensitivity, 113 mW pickup
* Dielectric strength 4000 Vrms
* > 5,5 mm clearance and creepage
* 5 Amp switching capability (version “T” 10 Amp)
* Two different footprints available
* Reinforced insu

📥 Download Datasheet

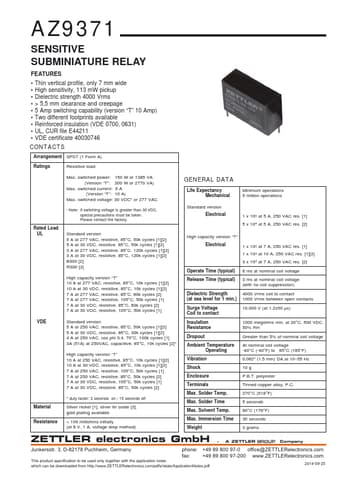

Preview of AZ9371 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ9371
Manufacturer
Zettler
File Size
45.50 KB
Datasheet
AZ9371-Zettler.pdf
Description
SENSITIVE SUBMINIATURE RELAY
