BLM8AD22S-60ABG Datasheet, Mmic, Ampleon

BLM8AD22S-60ABG Features

  • Mmic
  • Integrated input splitter in section A
  • Integrated output combiner in section A
  • Very high efficiency thanks to 3-way Doherty architecture
  • Designed

PDF File Details

Part number:

BLM8AD22S-60ABG

Manufacturer:

Ampleon

File Size:

1.79MB

Download:

📄 Datasheet

Description:

Ldmos 2-stage integrated doherty mmic. The BLM8AD22S-60ABG is a dual section solution using Ampleon’s state of the art GEN8 LDMOS technology. It includes a 45 W 2-stage ful

Datasheet Preview: BLM8AD22S-60ABG 📥 Download PDF (1.79MB)

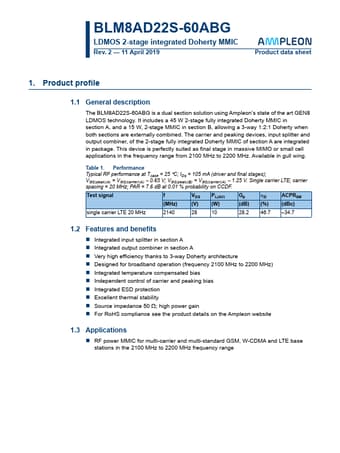

Page 2 of BLM8AD22S-60ABG Page 3 of BLM8AD22S-60ABG

BLM8AD22S-60ABG Application

  • Applications in the frequency range from 2100 MHz to 2200 MHz. Available in gull wing. Table 1. Performance Typical RF performance at Tcase = 25 C
