AN3202 - 1MHz Step-Up PWM Converter

AN3202 Description

AN3202 1MHz Step-Up PWM Converter with 5.5A Switch Current General .
Features The AN3202 is a current-mode boost DC/DC. Adjustable Output Voltage up to 12V converter with a 5. Intern.

AN3202 Features

* The AN3202 is a current-mode boost DC/DC
* Adjustable Output Voltage up to 12V converter with a 5.5A, 0.1Ω internal power
* Internal 0.1Ω, 5.5A, 18V Power MOSFET MOSFET to provide this regulator highly power
* Internal Soft-Start efficient. The AN3202 operates at 1MHz allowing

📥 Download Datasheet

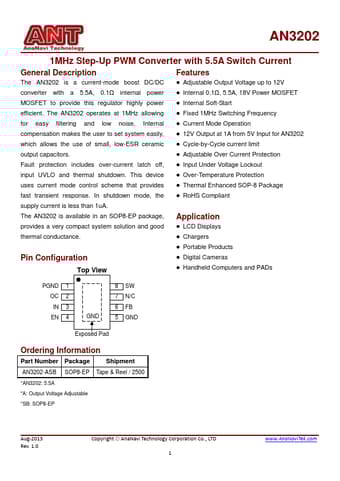

Preview of AN3202 PDF

Datasheet Details

Part number
AN3202
Manufacturer
AnaNavi
File Size
274.88 KB
Datasheet
AN3202-AnaNavi.pdf
Description
1MHz Step-Up PWM Converter
