AN32058A - 7 x 7 Dots Matrix LED Driver LSI

AN32058A Description

DReovcisNioon..T3A4-EA-04725 Product Standards AN32058A http://www.semicon.panasonic.co.jp/en/ 7 x 7 Dots Matrix LED Driver LSI .
AN32058A is 49 Dots Matrix LED Driver. Mobile Phone. Smart Phone. PCs. Game Consoles.

AN32058A Features

* 7 x 7 LED Matrix Driver (Total LED that can be driven = 49)
* Built-in memory (ROM and RAM)
* LDO : 2-ch
* SPI Interface : 1-ch
* Driver for RGB color unit : 1-ch

AN32058A Applications

* Mobile Phone
* Smart Phone
* PCs
* Game Consoles
* Home Appliances etc. Battery B G R VB VLED1 VLED2 CPU I/F LDOCNT LEDCTL INT CE CLK DI DO RSTB Y0~Y6 7 X0~X6 7 RGBGND PGND AGND IREF 27 k  VREFD 1.0 F LDO1 1.0 F LDO2 1.0 F Note) The application circuit is an example

📥 Download Datasheet

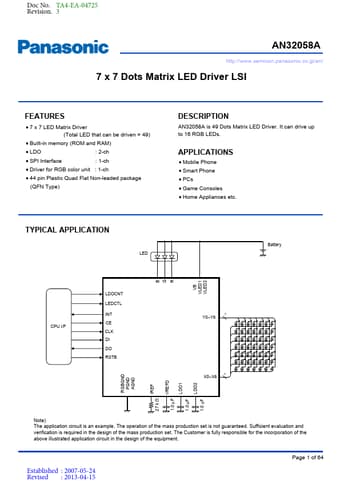

Preview of AN32058A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AN32058A
Manufacturer
Panasonic
File Size
893.34 KB
Datasheet
AN32058A-Panasonic.pdf
Description
7 x 7 Dots Matrix LED Driver LSI
