AN32054B

7 x 17 Dots Matrix LED Driver LSI

AN32054B Features

* 7 x 17 LED Matrix Driver (Total LED that can be driven = 119)

* Internal memory RAM (2-side)

* LDO (1-ch.)

* I2C interface + SPI interface

* 50 pin Wafer Level Chip Size Package (WLCSP) DESCRIPTION AN32054B is a 7 x 17 LED Matrix Driver equipped with RAM. APPLICATIONS

* Mo

AN32054B General Description

AN32054B is a 7 x 17 LED Matrix Driver equipped with RAM. APPLICATIONS
* Mobile Phone
* Smart Phone
* PCs
* Game Consoles
* Home Appliances etc. TYPICAL APPLICATION CPU I/F LDOCNT SERSEL LEDCTL INT SCE SCLK SDI SDO NRST EXTCLK CLKOUT VB VLED Battery Y0~Y6 7 X0~X16 17 LDO.

AN32054B Datasheet (1.00 MB)

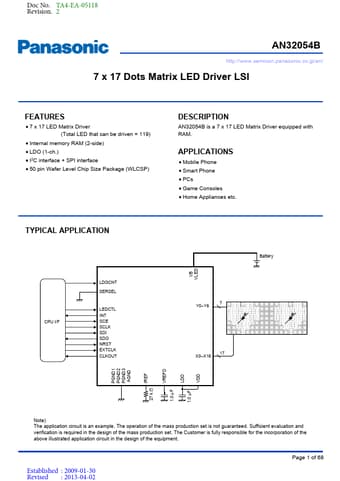

Preview of AN32054B PDF
