AH174 Inverted Output Hall Effect Latch

Anachip

Description

AH174 Inverted Output Hall Effect Latch For High Temperature * .
AH174 is a single-digital-output Hall-effect sensor for high temperature operation.

📥 Download Datasheet

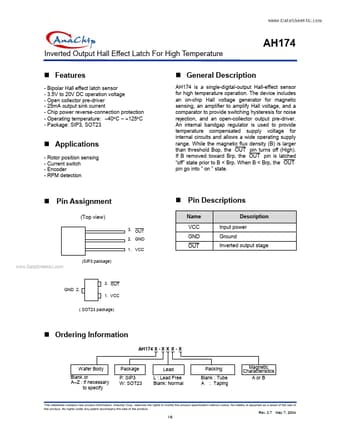

AH174 Datasheet Preview — Preview of AH174 PDF

Datasheet Specifications

Part number: AH174
Manufacturer: Anachip
File Size: 213.34 KB
Datasheet: AH174_Anachip.pdf
Description: Inverted Output Hall Effect Latch

Features

* - Bipolar Hall effect latch sensor - 3.5V to 20V DC operation voltage - Open collector pre-driver - 25mA output sink current - Chip power reverse-connection protection - Operating temperature:
* 40°C ~ +125°C - Package: SIP3, SOT23

Applications

* - Rotor position sensing - Current switch - Encoder - RPM detection
* Pin Assignment (Top view) 3. OUT 2. GND 1. VCC (SIP3 package)
