AH1714 LOW-VOLTAGE HIGH-SENSITIVITY HALL EFFECT LATCH SWITCH

The AH1711/AH1712/AH1713/AH1714 is a low-voltage, highsensitivity Hall effect latch IC designed for brushless DC-motor commutation speed measurement, angular or linear encoders and position sensors in industrial applications. To support a wide range of demanding applications, the design is optimized.

AH1714 Features

* Latch Operation

* High Sensitivity: Bop and Brp of ±7 Gauss and ±18 Gauss

* Open-Drain Output

* 2.4V to 5.5V Operating Voltage Range

* Chopper-Stabilized Design Provides

* Superior Temperature Stability

* Minimal Switch Point Drift

* Enhanced Immunity to Stress

AH1711-DIODES.pdf

This datasheet PDF includes multiple part numbers: AH1714, AH1711. Please refer to the document for exact specifications by model.

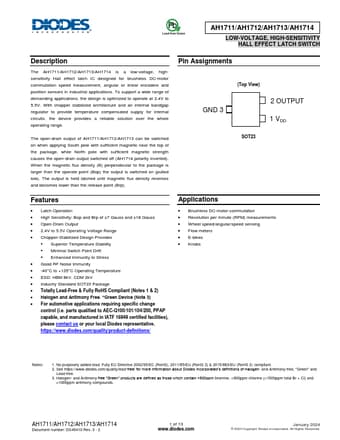

AH1714 Datasheet Preview Page 2 AH1714 Datasheet Preview Page 3

Datasheet Details

Part number:

AH1714, AH1711

Manufacturer:

DIODES ↗

File Size:

757.94 KB

Description:

Low-voltage high-sensitivity hall effect latch switch.

Note:

This datasheet PDF includes multiple part numbers: AH1714, AH1711.
Please refer to the document for exact specifications by model.
