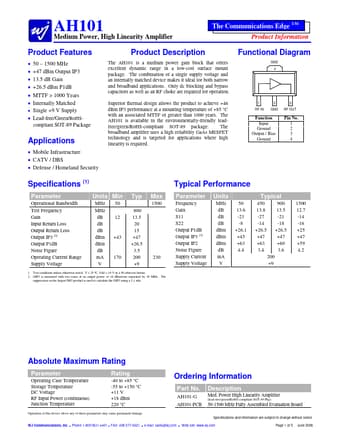

AH101 Datasheet, Amplifier, WJ Communication

AH101 Features

• Amplifier x 50
    – 1500 MHz x +47 dBm Output IP3 x 13.5 dB Gain x +26.5 dBm P1dB x MTTF > 1000 Years x Internally Matched x Single +9 V Supply x Lead-free/Green/RoHS- compliant SOT-

PDF File Details

Part number:

AH101

Manufacturer:

WJ Communication

File Size:

368.70kb

Download:

📄 Datasheet

Description:

High linearity amplifier. The AH101 is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a

AH101 Application

• Applications x Mobile Infrastructure x CATV / DBS x Defense / Homeland Security Product Description The AH101 is a medium power gain block that off
