AH102A Datasheet, Amplifier, WJ Communication

AH102A Features

  • Amplifier 350
      – 3000 MHz +46 dBm Output IP3 14.5 dB Gain +27 dBm P1dB MTTF > 1000 Years Internally Matched
  • Single +9 V Supply
  • Lead-free/Green/RoHS-compliant SO

PDF File Details

Part number:

AH102A

Manufacturer:

WJ Communication

File Size:

276.61kb

Download:

📄 Datasheet

Description:

High linearity amplifier. The AH102A is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a

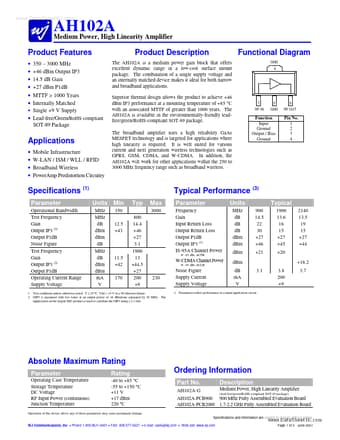

Datasheet Preview: AH102A 📥 Download PDF (276.61kb)
Page 2 of AH102A Page 3 of AH102A

AH102A Application

  • Applications Superior thermal design allows the product to achieve +46 dBm IP3 performance at a mounting temperature of +85 °C with an associated M
