AH102 Datasheet, Amplifier, WJ Communication

AH102 Features

  • Amplifier
  • 350-3000 MHz Bandwidth
  • +45 dBm Output IP3
  • 13 dB Gain
  • +27 dBm P1dB
  • MTBF >107 Hours
  • Internally Matched
  • Multiple Bias

PDF File Details

Part number:

AH102

Manufacturer:

WJ Communication

File Size:

75.93kb

Download:

📄 Datasheet

Description:

High linearity amplifier. Functional Diagram The AH102 is a medium power gain block that offers excellent dynamic range in a low cost surface mount package.

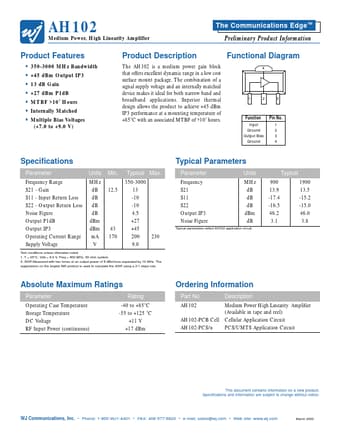

Datasheet Preview: AH102 📥 Download PDF (75.93kb)
Page 2 of AH102 Page 3 of AH102

AH102 Application

  • Applications Superior thermal design allows the product to achieve +45 dBm IP3 performance at a mounting temperature of +85°C with an associated MT
