AH101-G

High Linearity Amplifier

AH101-G Features

* 50

* 1500 MHz

* +47 dBm Output IP3

* 13.5 dB Gain

* +26.5 dBm P1dB

* MTTF > 1000 Years

* Internally Matched

* Single +9 V Supply

* Lead-free/RoHS-compliant SOT-89 Package AH101-G Medium Power, High Linearity Amplifier AH101 S

AH101-G General Description

The AH101-G is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a single supply voltage and an internally matched device makes it ideal for both narrow and broadband applications. Only dc blocking and bypass capacitors as well as a.

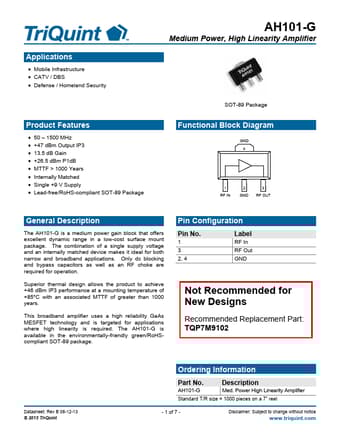

AH101-G Datasheet (548.54 KB)

Preview of AH101-G PDF

Datasheet Details

Part number:

AH101-G

Manufacturer:

TriQuint Semiconductor

File Size:

548.54 KB

Description:

High linearity amplifier.
