AH103

High Linearity Amplifier

AH103 Features

* 60

* 2700 MHz

* +27 dBm P1dB

* +46 dBm Output IP3

* 28.5 dB Gain @ 900 MHz

* Excellent ACPR

* MTTF > 100 Years

* SOIC-8 Pkg w/ heat slug Applications

* Mobile Infrastructure

* W-LAN / ISM / RFID

* MDS / MMDS In

AH103 General Description

Functional Diagram The AH103 is a high gain, high linearity ½-Watt amplifier. This device is comprised of two individual MMIC amplifiers internally and can be used with an external interstage match for any of the mobile infrastructure frequency bands. The dual-stage amplifier achieves up to +46 dB.

AH103 Datasheet (198.96 KB)

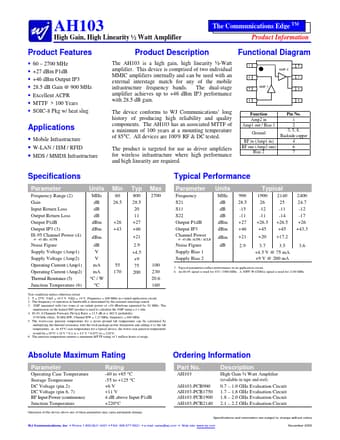

Preview of AH103 PDF

Datasheet Details

Part number:

AH103

Manufacturer:

WJ Communication

File Size:

198.96 KB

Description:

High linearity amplifier.
