AP1116

0.5A Low Dropout Positive Adjustable or Fixed-Mode Regulator

AP1116 Features

* 1.3V maximum dropout at full load current

* Fast transient response

* Output current limiting

* Built-in thermal shutdown

* Packages: SOT89

* Good noise rejection

* 3-Terminal Adjustable or Fixed 1.5V / 1.8V / 2.5V / 3.3V / 5.0V

* App

AP1116 General Description

AP1116 is a low dropout positive adjustable or fixed-mode regulator with minimum of 0.5A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1116 is al.

AP1116 Datasheet (140.08 KB)

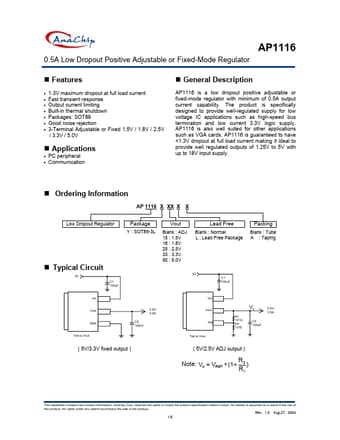

Preview of AP1116 PDF

Datasheet Details

Part number:

AP1116

Manufacturer:

Anachip

File Size:

140.08 KB

Description:

0.5a low dropout positive adjustable or fixed-mode regulator.
