AP1117C

1A Adjustable & Fixed Voltage LDO Linear Regulator

AP1117C Features

* z Low Dropout Voltage 700mV at 1.0A Typ. z Adjustable Output Voltage or Fixed Output Voltage Preset at 1.8V, 2.5V, or 3.3V z Output Voltage Accurac ±2% (special ±1% highly accurate) z Small Output Capacitor z Output Current Limit Protection z Thermal Overload Shutdown Protection z SOT-223 and TO-252

AP1117C General Description

The AP1117C is a low-dropout linear regulator that operates in the input voltage range from +2.5V to +7.0V and delivers 1A output current. The AP1117C is available in two types, fixed output voltage type or adjustable output voltage type. The fixed output voltage type is preset at an internally trim.

AP1117C Datasheet (323.26 KB)

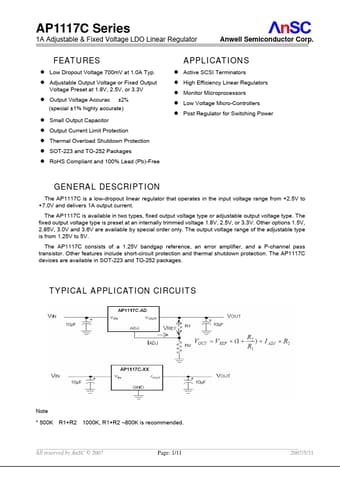

Preview of AP1117C PDF

Datasheet Details

Part number:

AP1117C

Manufacturer:

Anwell Semiconductor

File Size:

323.26 KB

Description:

1a adjustable & fixed voltage ldo linear regulator.
