AP1117

1A Low Dropout Positive Adjustable or Fixed-Mode Regulator

AP1117 Features

* 1.4V maximum dropout at full load current

* Fast transient response

* Output current limiting

* Built-in thermal shutdown

* Packages: SOT223, TO252, TO220, SOT89

* Good noise rejection

* 3-Terminal Adjustable or Fixed 1.5V, 1.8V,2.5V, 3.3V, 5

AP1117 General Description

AP1117 is a low dropout positive adjustable or fixed-mode regulator with minimum of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1117 is also.

AP1117 Datasheet (156.13 KB)

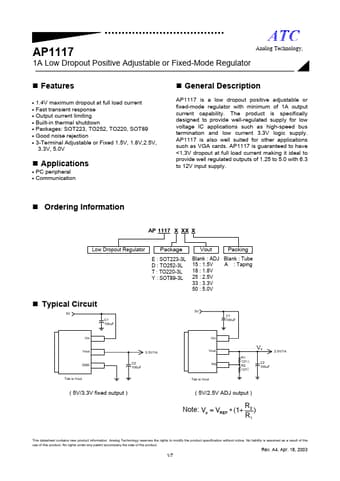

Preview of AP1117 PDF

Datasheet Details

Part number:

AP1117

Manufacturer:

Analog Technology

File Size:

156.13 KB

Description:

1a low dropout positive adjustable or fixed-mode regulator.
