AP1604 Datasheet - Anachip

PWM/PFM Dual Mode Step-down DC/DC Converter

AP1604 Features

* - Input voltage range: 2.2V~5.5V (VOUT type) - Oscillator frequency: 600KHz (Typ.) - Internal reference: 1.0V (Typ.) - High efficiency: 93% (Typ .) - Stand-by capability: ISTB=2µA. (Typ.) - Soft-start time set-up externally type possible - Current limit and thermal shutdown protection - Pb-Free Pack

AP1604 General Description

The AP1604 series are multi-functional step-down DC/DC converters with built-in speed, low ON resistance drivers. It is capable to deliver more than 800mA output current with external coil, diode and capacitor. Output voltage is set-up by the external resistors. (± 2.5% accuracy). The 600KHz AP1604.

AP1604 Datasheet (204.92 KB)

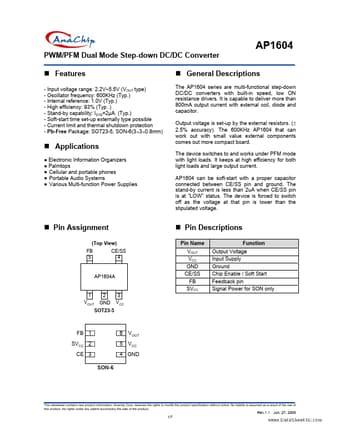

Preview of AP1604 PDF

Datasheet Details

Part number:

AP1604

Manufacturer:

Anachip

File Size:

204.92 KB

Description:

Pwm/pfm dual mode step-down dc/dc converter.
