AP1605 Datasheet - Anachip

PWM/PFM Dual-mode Step-Down Switching Regulator

AP1605 Features

* - Low current consumption: In operation: 100µA max. Power off: 2µA max. - Input voltage: 2.5V to 7V. Adjustable version (+2.5%) - PWM/PFM dual Mode - Oscillation frequency: 300KHz (Typ.) - With a power-off function. - Built-in internal SW P-channel MOS - SOP-8L/TSSOP-8L Package.

* General D

AP1605 General Description

AP1605 consists of CMOS step-down switching regulator with PWM/PFM dual mode control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AP1605 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM/PFM.

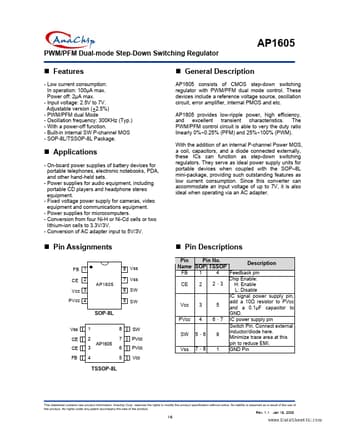

AP1605 Datasheet (173.84 KB)

AP1605 Datasheet Preview — Preview of AP1605 PDF

Datasheet Details

Part number:

AP1605

Manufacturer:

Anachip

File Size:

173.84 KB

Description:

Pwm/pfm dual-mode step-down switching regulator.
