AP1609 Datasheet, converter equivalent, Anachip

AP1609 Features

  • Converter - Input Voltage Range: 2.5~6V - Output Voltage Range: 3.0~17V(±2.5%) - PWM/PFM Switching Control - Oscillator Frequency: 300KHz(±20%) - High Efficiency: 91%(Typ .) - Stand-by Current: I

PDF File Details

Part number:

AP1609

Manufacturer:

Anachip

File Size:

185.04kb

Download:

📄 Datasheet

Description:

Pwm/pfm dual mode step-up dc/dc converter. The AP1609 is high efficient step-up DC/DC converter. Large output current is possible having a built in internal N channel MOSFET,

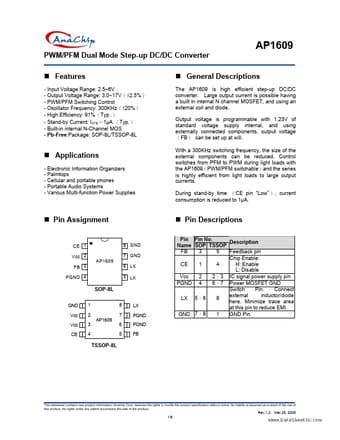

Datasheet Preview: AP1609 📥 Download PDF (185.04kb)
Page 2 of AP1609 Page 3 of AP1609

AP1609 Application

  • Applications - Electronic Information Organizers - Palmtops - Cellular and portable phones - Portable Audio Systems - Various Multi-function Power S
