3B45

(3B45 / 3B46) Isolated Frequency Input

3B45 Features

* Interfaces, isolates, & filters frequency inputs. The 3B45 accepts full-scale inputs from 25 to 1100 Hz The 3B46 accepts full-scale inputs from 520 Hz to 25 kHz. Modules provide simultaneous precision voltage and current outputs. Modules circuitry can withstand 130v rms at the input screwterminals.

3B45 General Description

The 3B45 and 3B46 are single-channel isolated frequency input moduels which produce simultaneous precision voltage and current outputs proportional to input frequency. Model 3B45 accepts full-scale inputs ranging from 25 Hz to 1100 Hz, while Model 3B46 accepts full-scale input from 520 Hz to 25kHz. .

3B45 Datasheet (381.16 KB)

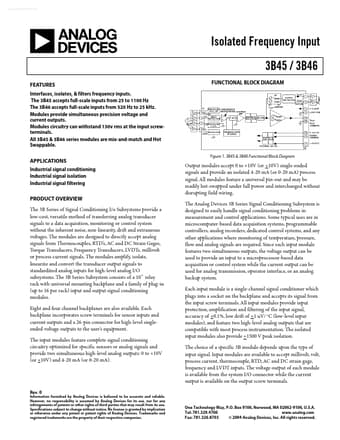

Preview of 3B45 PDF

Datasheet Details

Part number:

3B45

Manufacturer:

Analog Devices ↗

File Size:

381.16 KB

Description:

(3b45 / 3b46) isolated frequency input.
