3B46 (3B45 / 3B46) Isolated Frequency Input

The 3B45 and 3B46 are single-channel isolated frequency input moduels which produce simultaneous precision voltage and current outputs proportional to input frequency. Model 3B45 accepts full-scale inputs ranging from 25 Hz to 1100 Hz, while Model 3B46 accepts full-scale input from 520 Hz to 25kHz. .

3B46 Features

* Interfaces, isolates, & filters frequency inputs. The 3B45 accepts full-scale inputs from 25 to 1100 Hz The 3B46 accepts full-scale inputs from 520 Hz to 25 kHz. Modules provide simultaneous precision voltage and current outputs. Modules circuitry can withstand 130v rms at the input screwterminals.

3B45_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: 3B46, 3B45. Please refer to the document for exact specifications by model.

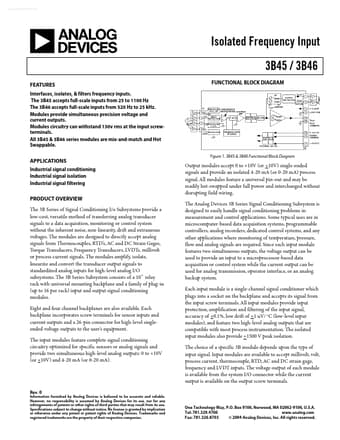

3B46 Datasheet Preview Page 2 3B46 Datasheet Preview Page 3
