3B47

Isolated / Linearized / Thermocouple Input

3B47 Features

* Interfaces, amplifies, filters, isolates, & linearizes analog input voltages from a J, K, T, E, R, S or B-type thermocouple Thermocouple input signal is internally linearized High accuracy internal cold junction compensation. Module provides +1500 V peak of galvanic transformerbased isolation with a

3B47 General Description

The 3B47 is a single-channel isolated thermocouple signalconditioning module which interfaces, amplifies, isolates, protects, linearizes and filters analog input voltages from a J, K, T, E, R, S or B-type thermocouple. The thermocouple input signal is internally linearized to provide an output volta.

3B47 Datasheet (544.93 KB)

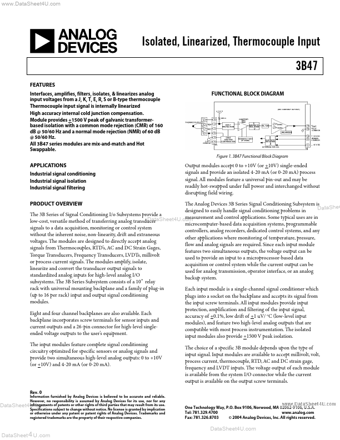

Preview of 3B47 PDF

Datasheet Details

Part number:

3B47

Manufacturer:

Analog Devices ↗

File Size:

544.93 KB

Description:

Isolated / linearized / thermocouple input.
