AD14060

DSP Multiprocessor

AD14060 Features

* ADSP-21060 core processor ( × 4) 480 MFLOPS peak, 320 MFLOPS sustained 25 ns instruction rate, single-cycle instruction execution

* each of four processors 16 Mbit shared SRAM (internal to SHARCs) 4 gigawords addressable off-module memory Twelve 40 Mbyte/s link ports (3 per SHARC) Four 40 Mbit

AD14060 General Description

The AD14060/AD14060L Quad-SHARC is the first in a family of high performance DSP multiprocessor modules. The core of the multiprocessor is the ADSP-21060 DSP microcomputer. The AD14060/AD14060L has the highest performance-to-density and lowest cost-to-performance ratios of any in its class. It is id.

AD14060 Datasheet (1.33 MB)

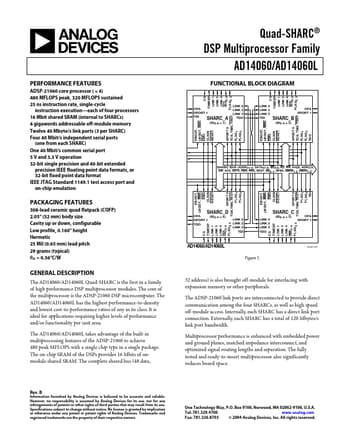

Preview of AD14060 PDF

Datasheet Details

Part number:

AD14060

Manufacturer:

Analog Devices ↗

File Size:

1.33 MB

Description:

Dsp multiprocessor.
