AD149 - PNP Transistor

AD149 Description

isc Silicon PNP Power Transistor .
Wide Area of Safe Operation. DC Current Gain- : hFE=30-100@IC= -1A. Collector-Emitter Saturation Voltage- : VCE(sat)= -0.

AD149 Applications

* Designed for general-purpose power switch and amplifier, consumer and industrial applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -6 V IC Collector Curre

📥 Download Datasheet

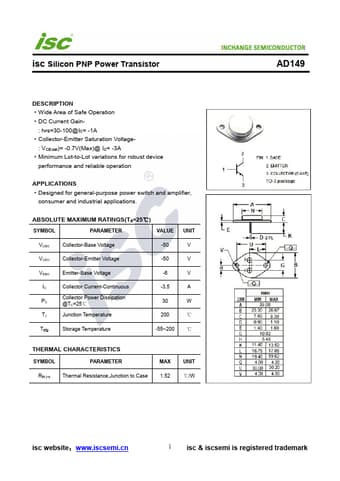

Preview of AD149 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AD149
Manufacturer
INCHANGE
File Size
186.30 KB
Datasheet
AD149-INCHANGE.pdf
Description
PNP Transistor
