AD14060L, AD14060 Datasheet - Analog Devices

AD14060-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: AD14060L, AD14060. Please refer to the document for exact specifications by model.

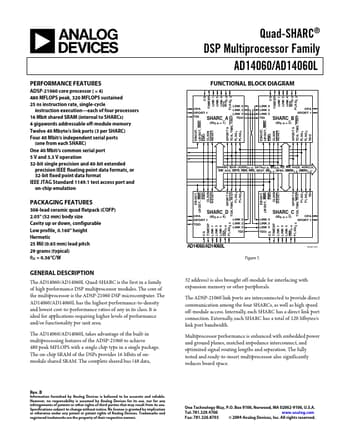

AD14060L Datasheet Preview Page 2 AD14060L Datasheet Preview Page 3

Datasheet Details

Part number:

AD14060L, AD14060

Manufacturer:

Analog Devices ↗

File Size:

1.33 MB

Description:

Dsp multiprocessor.

Note:

This datasheet PDF includes multiple part numbers: AD14060L, AD14060.
Please refer to the document for exact specifications by model.

AD14060L, AD14060, DSP Multiprocessor

The AD14060/AD14060L Quad-SHARC is the first in a family of high performance DSP multiprocessor modules.

The core of the multiprocessor is the ADSP-21060 DSP microcomputer.

The AD14060/AD14060L has the highest performance-to-density and lowest cost-to-performance ratios of any in its class.

It is id

AD14060L Features

* ADSP-21060 core processor ( × 4) 480 MFLOPS peak, 320 MFLOPS sustained 25 ns instruction rate, single-cycle instruction execution

* each of four processors 16 Mbit shared SRAM (internal to SHARCs) 4 gigawords addressable off-module memory Twelve 40 Mbyte/s link ports (3 per SHARC) Four 40 Mbit
