AD2S105 Three-Phase Current Conditioner

A two-phase rotated output facilitates the implementation of multiple rotation blocks. The AD2S105 is fabricated on LC2MOS and operates on ± 5 volt power supplies. PRODUCT HIGHLIGHTS The AD2S105 performs the vector rotation of three-phase 120 degree or two-phase 90 degree sine and cosine signals b.

AD2S105 Features

* Current Conditioning Complete Vector Transformation on Silicon Three-Phase 120° and Orthogonal 90° Signal Transformation Three-Phase Balance Diagnostic

* Homopolar Output DQ Manipulation Real-Time Filtering APPLICATIONS AC Induction Motor Control Spindle Drive Control Pump Drive Control Compre

AD2S105_AnalogDevices.pdf

Preview of AD2S105 PDF

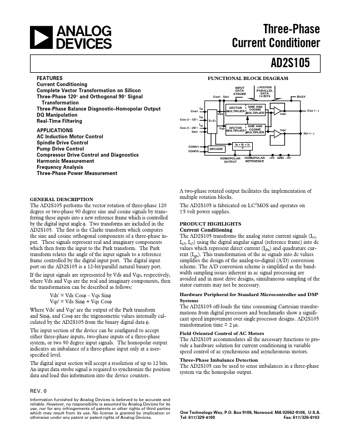

AD2S105 Datasheet Preview Page 2 AD2S105 Datasheet Preview Page 3

Datasheet Details

Part number:

AD2S105

Manufacturer:

Analog Devices ↗

File Size:

292.77 KB

Description:

Three-phase current conditioner.
