AD2S1210-EP

10-Bit to 16-Bit R/D Converter

AD2S1210-EP Datasheet (503.21 KB)

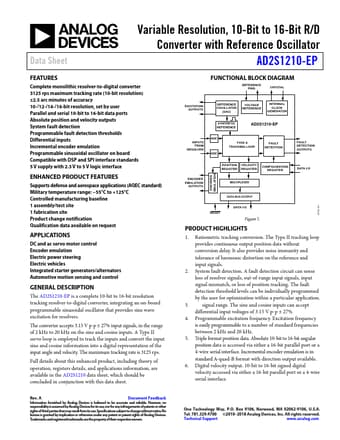

Preview of AD2S1210-EP PDF

Datasheet Details

Part number:

AD2S1210-EP

Manufacturer:

Analog Devices ↗

File Size:

503.21 KB

Description:

10-bit to 16-bit r/d converter.

AD2S1210-EP Features

* Complete monolithic resolver-to-digital converter 3125 rps maximum tracking rate (10-bit resolution) ±2.5 arc minutes of accuracy 10-/12-/14-/16-bit resolution, set by user Parallel and serial 10-bit to 16-bit data ports Absolute position and velocity outputs System fault detection Programmable faul

AD2S1210-EP General Description

The AD2S1210-EP is a complete 10-bit to 16-bit resolution tracking resolver-to-digital converter, integrating an on-board programmable sinusoidal oscillator that provides sine wave excitation for resolvers. The converter accepts 3.15 V p-p ± 27% input signals, in the range of 2 kHz to 20 kHz on the .
